How to Check the CPU and Concurrent Connection Usage?

Do you know you can view your website’s current resource usage? Yes, that’s possible. How?

The CPU and Concurrent Connection Usage is the answer. It is a resource monitoring tool that allows you to see the detailed information about the problematic processes that run on your account. This information further helps you to find the reason behind getting the trigger for resource limit.

Based on the resource usage of your account, you might see the below summary displays on the Overview page of the CPU and Concurrent Connection’s Resource Usage:

  • When there has been no activity on your site within the past 24 hours you will see the below display:



This message indicates that your account didn’t trigger any limits within the past 24 hours.

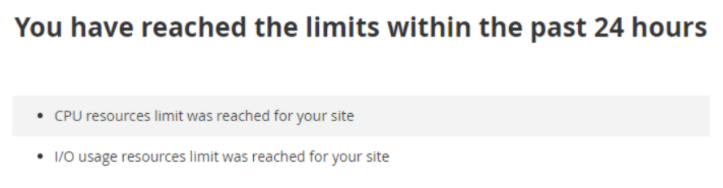

  • When your site has been limited within the past 24 hours the below message will get displayed:



This message indicates that your account triggered at least one resource limit within the past 24 hours. Additional information about which resource(s) triggered the limit gets displayed in cPanel.

  • When your site might hit resource limits soon the below message will get displayed:

This message gives you a warning that your account may exceed resource limit soon. You will get the additional information about which resource is at risk of exceeding a limit in the cPanel.

Diving into details of resource usage information:

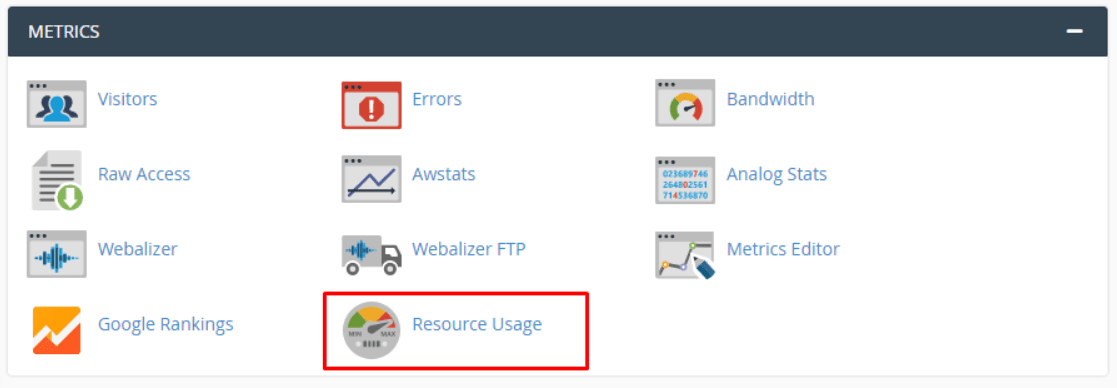

• Go to the Metrics section and click on CPU and Concurrent Connection Usage.

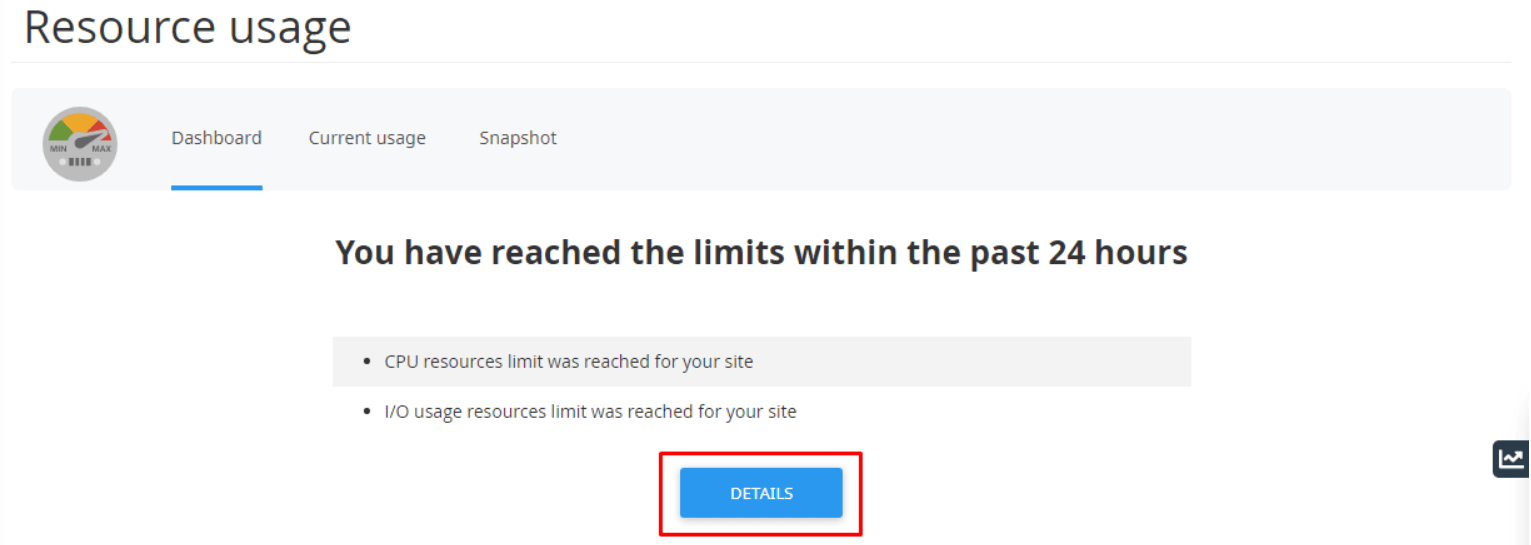

• You will find your account’s status displayed on the Resources Usage Overview page. Click on Details for more information.

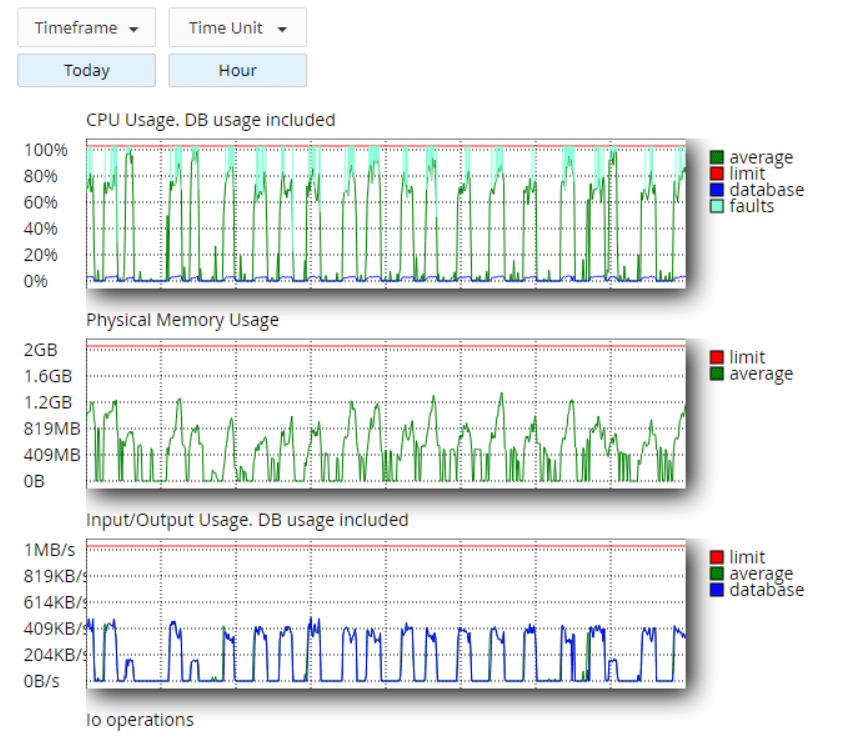

• The resource utilization will be displayed in the form of graphs and tabular data.

Understanding the Terms in Current Usage Stats

CPU Usage

CPU usage represents the amount of CPU resources your account is using currently from the allocated resources. If you see CPU usage as 100%, it means that your account is using all the allocated CPU resources. If there are any new processes to be started, those will be queued until the current processes get completed. This can lead your website to slow down severely and even time out.

inodes Usage

inodes usage represent the number of files and folders you have on your account. It is a record in the disk table of your account where each record comprises of the information about a file or a folder (such as its size, owner, etc., except file name and data content). The more the number of files/folders your account has, the more inodes you use; and the more inodes you use, the more system resources your account consumes. If your account reaches the maximum number of inodes, you might experience problems such as uploading files, receiving emails, backing up your website properly, and getting errors when you access your website.

Tip to reduce the number of inodes your account uses

The number of equals the total number of files and folders on your web hosting account. In order to reduce your inode usage, you will have to use the less number of files and folders on your account. This is easy to do just by removing files and folders that you don’t require.

I/O Usage (input/output)

The I/O usage represents the amount of I/O (or disk activity) your account is using. In simple terms, it is the speed of data transfer between the RAM and hard disk. Each time you use the server disk drive (for either reading or writing to the server), you will consume I/O. Websites that run a large number of media or that has many database records will have a higher I/O usage. In case, your account is on the verge of exceeding your I/O limit, you won’t see errors on your website. Instead, your website simply freezes while waiting for the data to transfer from the hard disk to the RAM.

IOPS

IOPS is the abbreviated form for “Input/Output Operations Per Second”. It represents the limit on the total number of read/write operations per second. When it reaches the limit, the read/write operations stop until current second expires.

Entry Processes

It represents the number of PHP, CGI, etc. scripts you run at a once. Note that this number doesn’t matches to the number of visitors you can have on your website at a single time. Generally, an “Entry Process” takes only a second to complete. For example, if you are running WordPress (which is written in PHP) on your website, every time a visitor visits your homepage, the server will process the page request – that is one process. As soon as your homepage gets loaded in their browser, it is no longer considered as a process, until the visitor takes some action or else if you want to generate another process, take the action to open another page on your website. However, if you notice that the number of Entry Processes is high but you have a low traffic website, it could mean something is wrong with your PHP scripts. An outdated WordPress item, such as a plugin or even a theme can also be the cause of an entry process.

Number of processes

It represents the number of active processes your account can process at the same time. This number comprises of all processes generated by your account.

Physical Memory Usage

The physical memory usage or RAM represents the actual memory allocated for your account.

Taking a look at the resource usage snapshots

With the snapshots you get to find the reason for your account hitting its limits.

  • Go to the Resources Usage Overview page and click on Snapshots.



  • Select the date for which you want to view the snapshots from the calendar.

  • Go to the Choose snapshot drop-down menu, select the snapshot for the specific time you want to view.

  • In order to view the previous and next snapshot, you can use the Previous snapshot and Next snapshot link.

This way you can check your resources usage on your server.
